| 主板 | PEN- 5130 |
| Support 2nd generation Intel? Core? processor family/Intel? Xeon? E3 family, Max 95watt |
| Intel? C206 |
| 內存 | 4 x 240-pin DDR3 Support 1333/1600 MHz DIMM slots, up to 16GB ECC/non-ECC SDRAM |
| LAN 特點 | LAN Chip: Intel? 82583V |
| Support 10/100/1000M/10G link speed |
| LAN Bypass: 4 pairs |
| LAN module (Optional) |
| 擴展 | 1x PCIex8 Slot |

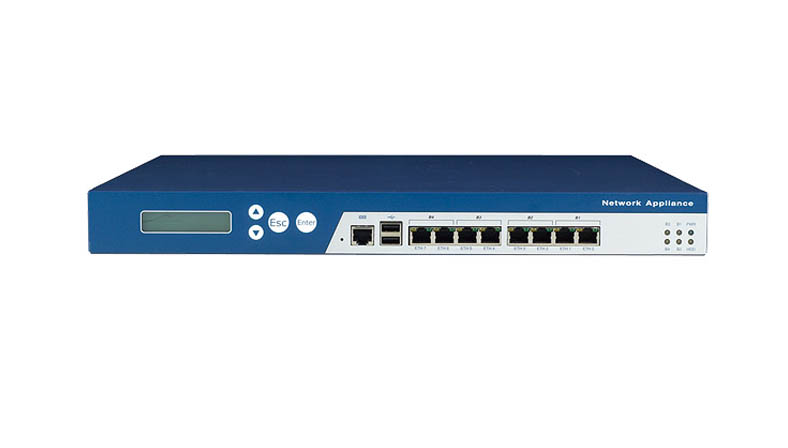

| I/O 接口-前面板 | Power status/HDD status/LAN status/Bypass status LED |
| 2 x USB 2.0 ports |
| 1 x RJ45 type console port |
| 8 x Copper LAN ports |
| 1 x LAN module (Optional) |

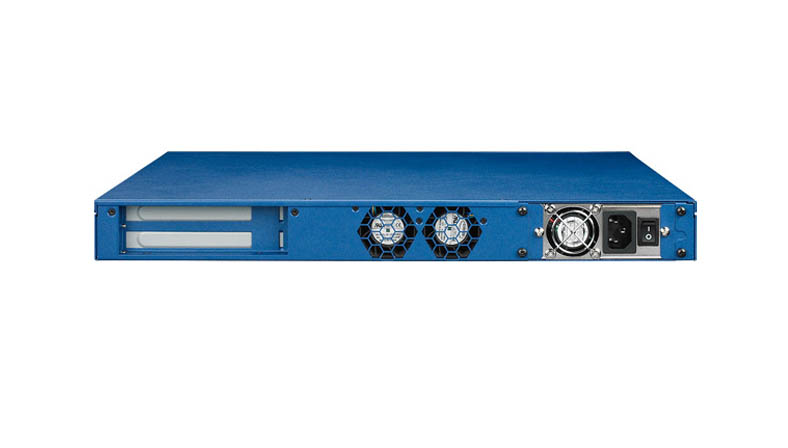

| I/O 接口-后面板 | 1 x expansion slot |
| 2 x USB 2.0 ports (Optional) |
| 1 x VGA port (Optional) |
| 設置 | 1 x on-board CompactFlash socket |
| 1 x internal 3.5" HDD bay/two 2.5" HDD Bay (Optional) |
| 1 x SATA-DOM device space |
| 電源輸入 | 200W ATX Power Supply |
| 規(guī)格尺寸 | Chassis Dimension: 430mm x 450mm x 44mm |
| Carton Dimension: 560mm x 620mm x 190mm |
| 重量 | Without Packing: 8KgWith Packing: 12Kg |
| 環(huán)境 | Operating temperatures : 0°C~40°C |
| Storage temperature : -20°C~75°C |
| Relative humidity : 10%~90% non-condensing |
| 通過認證 | CE approval FCC Class A UL |
