| 主板 | PEN- 3170 |
| Supports Intel? 6th gen. Xeon?/Core?/Pentium? processors |
| (codenamed Skylake-S) |
| Intel? H110/Intel? C236 chips |
| 內存 | 2 x DDR4 2400 memory DIMM, support ECC/non-ECC memory, Max 32GB |
| LAN | LAN Chip: Intel? i211-AT |
| Support 10/100/1000/10G link speed |
| LAN Bypass: 2 pairs |

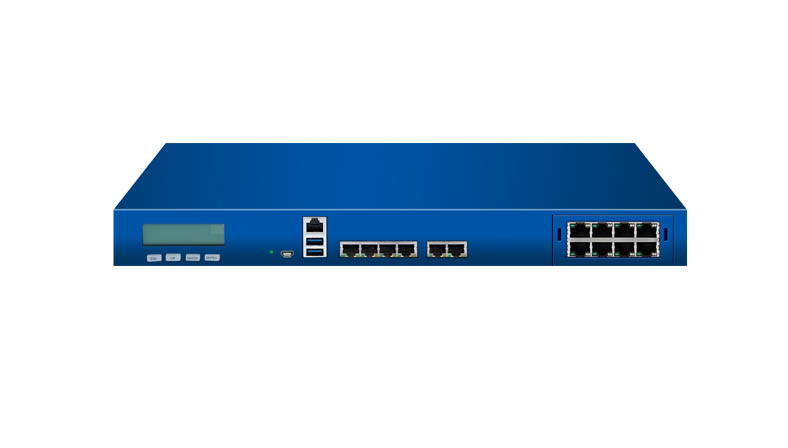

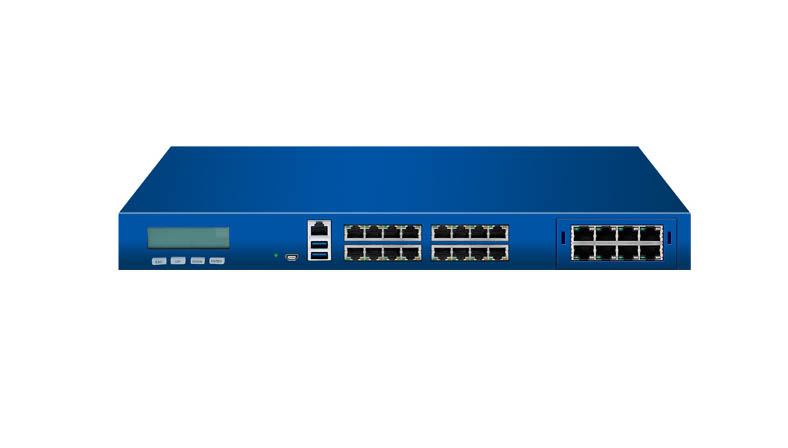

| 前面板I/O接口 | Power status/HDD status/LAN status/bypass status LEDs |
| 2 x USB 3.0 ports |
| 1 x micro USB console port (optional) |
| 1 x RJ45 type console port |
| Max. 16 x copper LAN ports |
| 1 x Reset button |

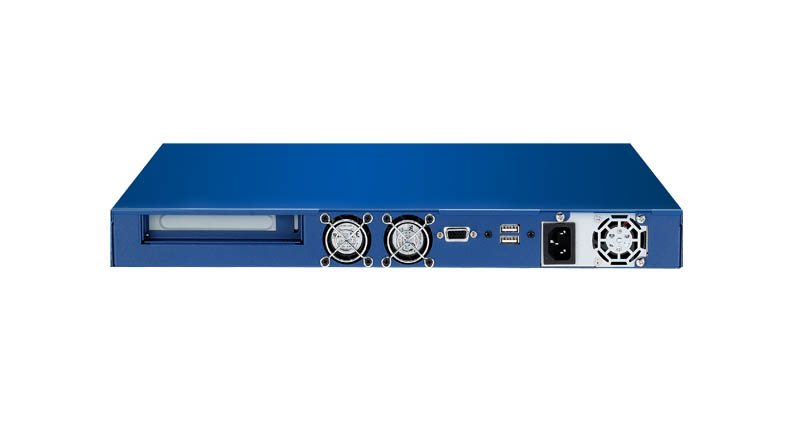

| 后面板I/O接口 | 1 x Rear PCIe x 8 expansion slot (optional) |
| 1 x VGA Port |
| 1 x Power button switch (optional) |
| 2 x USB 3.0 ports (optional) |
| 存儲設備 | 1 x SATA DOM (power pin reserved) |
| 2 x 2.5” HDD bay |
| 電源輸入 | ATX power supply 250W |
| 尺寸 | Chassis dimension: 438 mm x 300mm x 44mm |
| Carton dimension : TBC |
| 重量 | Without packing: TBC |
| With packing: TBC |
| 環(huán)境 | Operating temperatures: 0°C~40°C |
| Storage temperature: -20°C~75°C |
| Relative humidity: 10%~90% non-condensing |
| 通過認證 | CE approva lFCC Class A UL |
